适用范围
爆炸性气体混合物危险场所:1区、2区
Places with explosive gaseous mixtures:Zone 1 & 2
爆炸性气体混合物:ⅡA、ⅡB、ⅡC
Explosive gaseous mixtures:ⅡA、ⅡB、ⅡC
温度组别:T1-T4
Temperature classification:T1-T4
防爆标志:Exd Ⅱ BT4,Exed Ⅱ CT4
Explosion-proof mark:Exd Ⅱ Bt4,Exed Ⅱ CT4
适用于交流50Hz,220V/380V,直流电压至220V的线路中,
广泛用于石油化工、环保等行业的自动化控制
Be suitable for the AC/DC CIRCUITS UP TO 220V;be widely used for automatic control in petro-chemical and environment protection industry etc
防护等级:IP54
Degree of protection:IP54

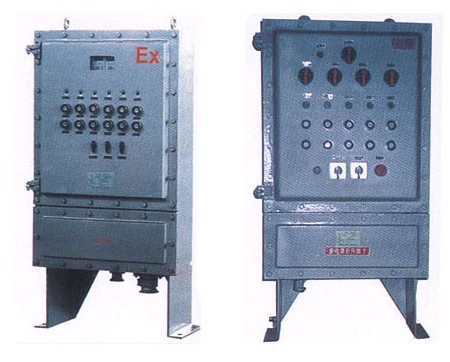

产品特点
钢板焊接外壳
Steel plate welded casing
内装变压器、交流接触器、热继电器、电流互感器、指示化、PLC及各种仪表显示镜
With built-in transformers,ACcontactors,thermal relays,current transformers,indicating lamps,PLC and displaying glass of various instruments
本系列电气控制箱可根据要求代为设计或按用户提供的电气线路图生产
This series of control box can be designed for the users as per user's requirement or be manufacured as per the electric circuit diagram provided by the users
接线腔、元件腔分别独立,可设置多种规格及个数不等的接线端子
Wiring chamber and component chamber are separate and independent;it can be configurated with several kinds of specification and different number of wire terminals
进出线口,根据电缆的规格选用钢管或电缆布线,电缆布线需配电缆夹紧密封接头
Incoming and outgoing wire port can be steel tube or cable wiring as per the sizes of cables selected;cable wiring should be equipped with clamping sealing joint

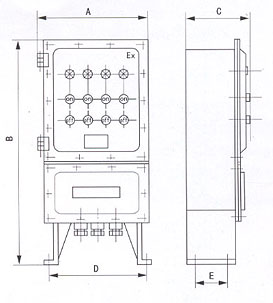

外形及安装尺寸
