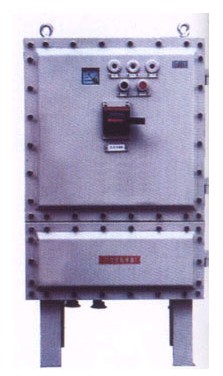

BQC-R□系列隔爆型软起动器(ⅡB)
适用范围
爆炸性气体混合物危险场所:1区、2区 Places with explosive gaseous mixtures:Zone 1 & 2 爆炸性气体混合物:ⅡA、ⅡB Explosive gaseous mixtures:ⅡA、ⅡB 温度组别:T1-T4 Temperature classification:T1-T4 防护等级:IP54 Degree of protection:IP54
产品特点
钢板焊接外壳 Steel plate welded casing 内装ABB或施耐德等公司生产的固态软起动器 With built-in solid state soft starter produced by ABBor Scheneid Co., 适用于50Hz,-380V/660V 15-90kW三相异步电动机不频繁起动和停止 Be suitable for the unfrequent starting /stopping of 3-phase motors,50Hz,-380V/660V 15-90kW 采用逐步升压的方法,实现平滑起动 Realize smooth starting by gradually increasing the voltage 可根据负载特性选用常规起动和重载起动 Can be selected as regular starting or heavy -duty starting as per the load characteristics 起动参数可自动设定 Starting parameters can be automatically set 外置式参数设定按钮,通过视镜显示面板参数 Externally-mounted setting pushbuttons for parameters,display the parameters on front panel viasight glass 钢管或电缆布线 Wirting by steel tube/cable

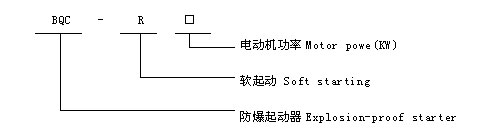

型号含义

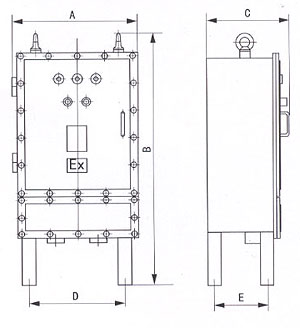

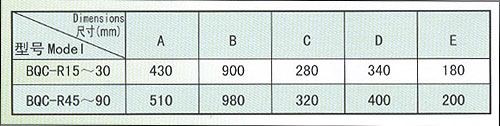

外形及安装尺寸
|
